M90 Speaker
NEW PRODUCT
The NEW M90 Miller & Kreisel delivers everything and then a little more.
M90 a step-up to the M50 and M70 speakers. The décor-friendly On-Wall ultra slim and low enclosure design is the benchmark for all M Series.
In the NEW M90, we have added 2 additional bass drivers, it adds both sensitivity and bass response over its brethren. Ideally suited for rooms where extra output is needed.
- The M90 has each set of woofers in their own anti-resonant acoustic chamber, the center 2 working as a midrange, and the other 2 woofers covering bass frequencies. This is to ensure minimal distortion and cabinet resonances common with slim speakers.
- The M90 is also phase aligned to operate as an ideal center channel speaker, with 100% symmetric coverage vertically and horizontally
New high-performance components:
- 1” coated silk dome neodymium tweeter.
- 4” glass fiber woofers.
- Phase-focused crossover designs optimized for wall mounting.
In addition to the performance enhancements of the M90, it also sports a long profile, designed to match up to today’s large format flat screen TV’s for a more pleasing aspect ratio.
Available in satin paint White & Black, matching all M Series products
Specifications M90
Specifications for the M90 Speaker
Sound
Nominal System Impedance | 4 ohm | (Z-min 3.4 ohm) |
Frequency Response: | 70-20K Hz | (average response in room +/- 2 dB) |
Frequency Roll Off: | 70 Hz | (-10 dB 80 Hz near field wall mounted) |
Crossover Frequency: | 600 Hz / 2.0 KHz | “Phased focused” (2nd order) Tapered |
Tweeter (shielded): | 1” Dome | Coated Silk dome / Neodymium magnet |
Woofer | 4 x 4″ | Coated Glass Fiber |
Power Handling: | 150 watt | Long term IEC-268-5 (cycled input 80-20K Hz) |
Power Handling: | 70 watt | Rated IEC-268-5 (constant input 80-20K Hz) |
Recommended Amplifier Power: | 25-200W | (Recommended amp power to driver speaker) |
Sensitivity: | 89 dB | |
System Princip: | Sealed enclosure | |
Connection: | Terminal gold plating | Screw for 5mm Cable / Banana |
Accessories | Yes | Wall mount Brackets/Screws/Gloves |
Welcome card | Yes | “Included in packing” |

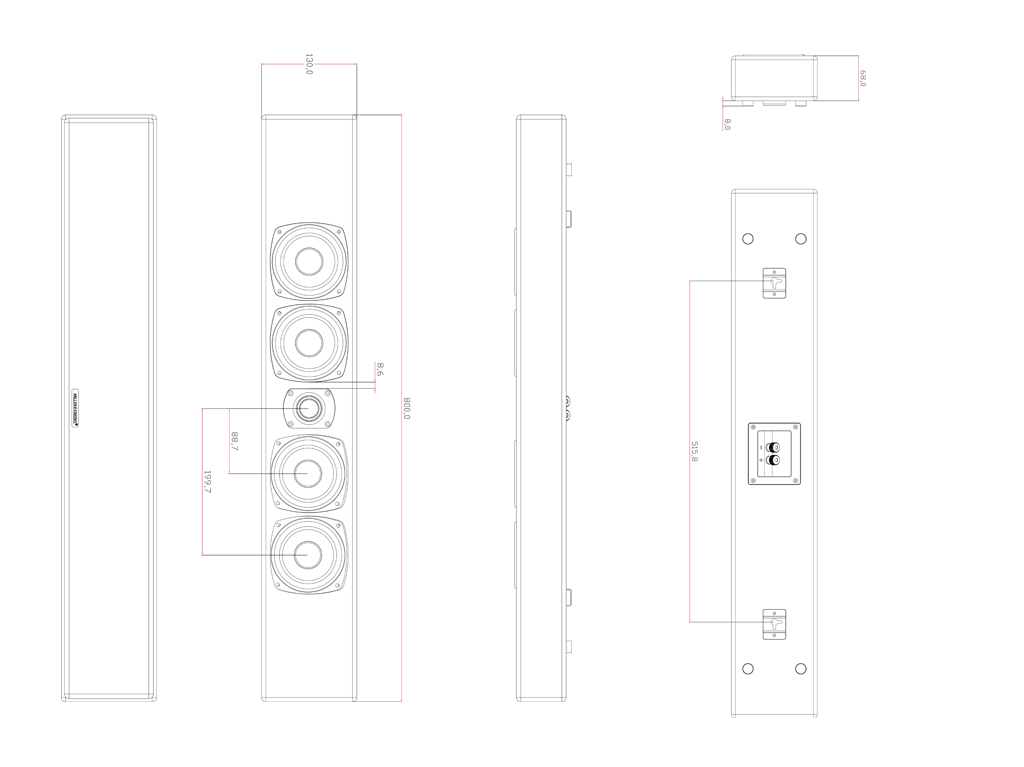

Dimensions
Dimensions | HxWxD: | 31,5 x 5,1 x 3,3 inch / 80 x 13 x 8,5 cm (incl grill) |
Weight: | Netto | 12.40 lbs / 5.62 kg |
Colors
Finish: | Painted | Black / White Satin |
