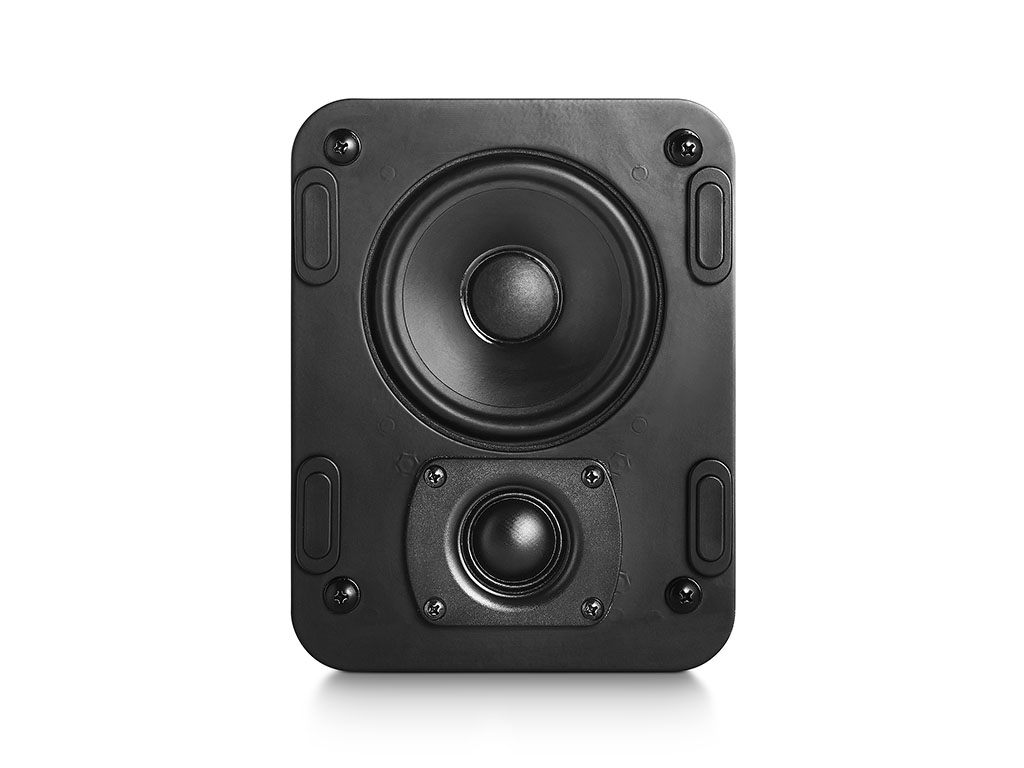

Specifications IW5
Sound
| Impedance | 4 ohm |
| Recommended Amplifier Power: | 25-125W |
| Bass/Midrange: | 4” Polymer coated texture taper |
| High Frequency Driver: | 1” Soft fabric dome |
| Frequency Response: | 100 Hz – 20 kHz, ±3dB |
| Sensitivity: | 85 dB, 2.83V/1m |

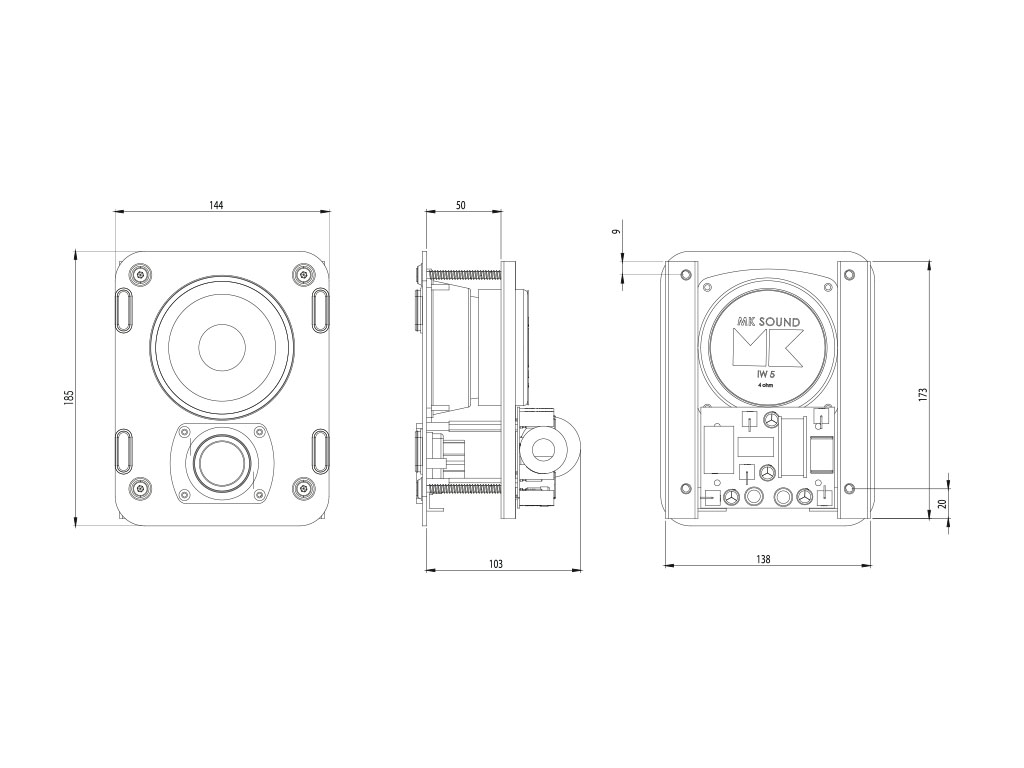

Dimensions
| Grille Dimensions (HxW): | 8.81”, 224 mm |
| Baffle Dimensions (HxW): | 8.66” / 220 mm |
| Baffle Dimensions (HxW): | 7.28 x 5.66”, 185 x 144 mm |
| Wall Cutout (HxW): | 6.45 x 4.88”, 164 x 124 mm |
| Mounting Depth: | 4.05”, 103 mm |
| Weight: | 5.3 lbs / 2.4 kg |
Colors

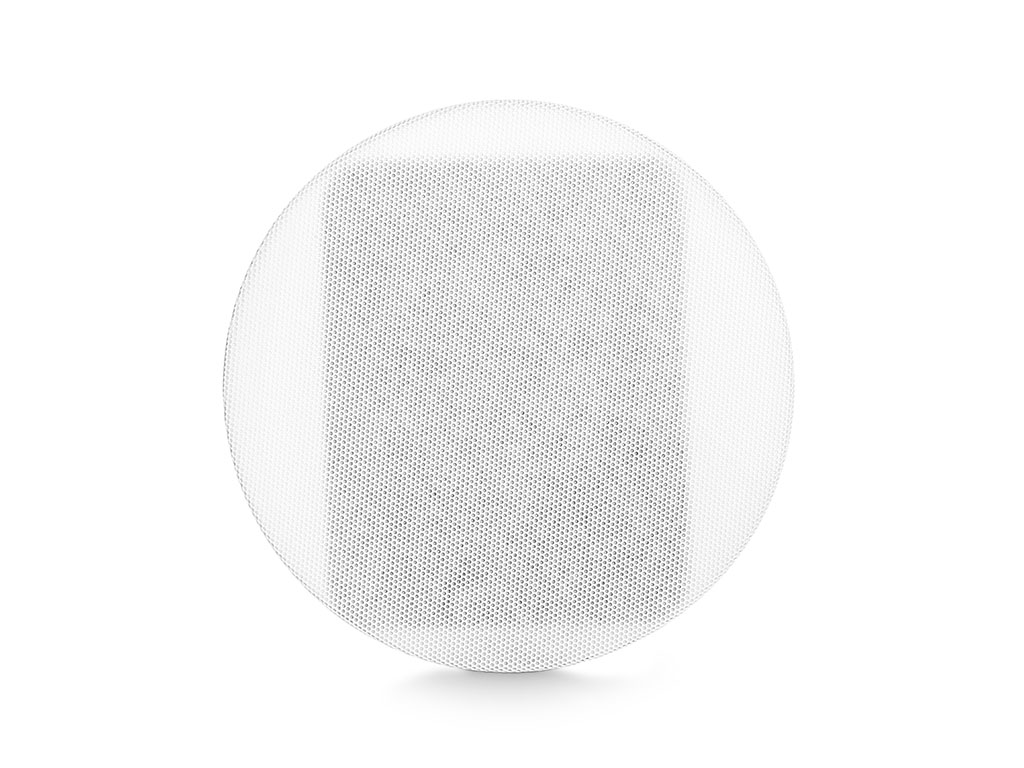

| Grill Finish: | White metal, paintable |
